Champion 100 HDPW High Temperature Rack Conveyor Dishwashing Machine - 277 Racks/Hour

Product image 1

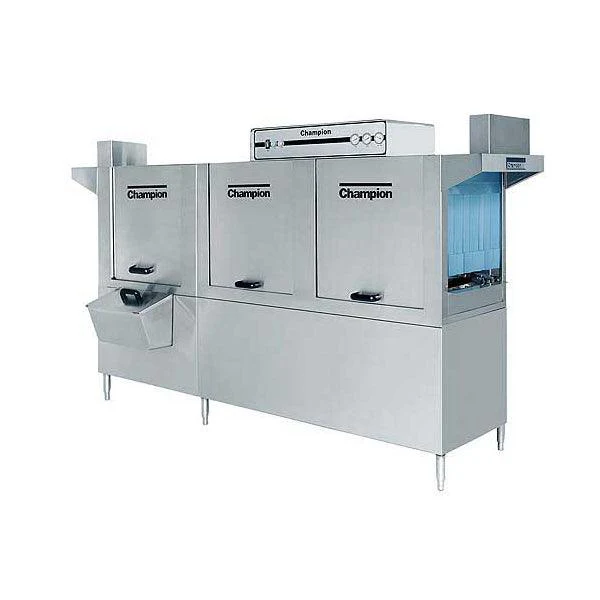

Champion 100 HDPW High Temperature Rack Conveyor Dishwashing Machine - 277 Racks/Hour

Champion 100 HDPW High Temperature Rack Conveyor Dishwashing Machine - 277 Racks/Hour

  • Energy Star Qualified
  • Dual-Pawl Cradle Drive System
  • Anti-Jam Conveyor Drive System
  • Automatic Tank Fill
  • Door Safety Switch
  • Never Leak, Ball Valve Drain Closure
  • Automatic Tank Fill
  • Electric Tank Heat
  • Wash/Rinse pump 2 HP motors
  • Stainless Steel Pump and Impeller
  • Vent Fan Control Switch
  • Self Diagnostic Controls
  • Stainless Steel Rear Manifolds
Description

The 277 Rack/Hr High Temp Conveyor Dishwasher w/ Prewash utilizes Champion's two-tank wash system plus a 36-inch wide heavy-duty prewash module to handle even the dirtiest dishes that you can send its way. Champion has designed this high-temp conveyor dishwasher to not only provide you with an intense cleaning for your dishes, but to also conserve water and electricity. Such efficiencies as the Energy Sentinel, which is an idle pump shut-off, and the Never leak drain closure which uses a ball valve, have helped the Champion 100 HDPW earn its ENERGY STAR rating. The conveyor dishwasher features a top mounted control cabinet. In addition, Champion has designed an anti-jam conveyor drive system so you can wash up to 277 dish racks without worrying. Plus, the conveyor's vertical opening can accommodate items as large as an 18" x 26" sheet pan, increasing the variety of dishes that you can put through the unit. Note that this model is available standard with 208 Volt electrical, but there is also an optional 240 volt electrical model.

Specifications
Specifications
Model 100HDPW
Width 100 inches
Depth 36.13 inches
Height 65.6 inches
Voltage 208 Volt Standard
Hertz 60 Hz
Phase 3
Amps 162
Water Usage 0.45 Gal/Rack
Product Type Conveyor Dishwasher
Manufacturer Champion
Booster Heater Included Yes
Booster Tank Capacity 6 Gal
Booster Wattage 15 kW
Conveyor Horsepower 1/6
Conveyor Speed 7.7 Ft/Min
Incoming Water Temperature 140 Degrees F
  • NSF Certified This item meets NSF's standards that focuses on public health protection, ensuring the item is designed and constructed in a way that promotes food safety.
  • Files

    $655,659,900.00
    Champion 100 HDPW High Temperature Rack Conveyor Dishwashing Machine - 277 Racks/Hour
    $655,659,900.00

    Product Information

    Shipping & Returns

    Description

    • Energy Star Qualified
    • Dual-Pawl Cradle Drive System
    • Anti-Jam Conveyor Drive System
    • Automatic Tank Fill
    • Door Safety Switch
    • Never Leak, Ball Valve Drain Closure
    • Automatic Tank Fill
    • Electric Tank Heat
    • Wash/Rinse pump 2 HP motors
    • Stainless Steel Pump and Impeller
    • Vent Fan Control Switch
    • Self Diagnostic Controls
    • Stainless Steel Rear Manifolds
    Description

    The 277 Rack/Hr High Temp Conveyor Dishwasher w/ Prewash utilizes Champion's two-tank wash system plus a 36-inch wide heavy-duty prewash module to handle even the dirtiest dishes that you can send its way. Champion has designed this high-temp conveyor dishwasher to not only provide you with an intense cleaning for your dishes, but to also conserve water and electricity. Such efficiencies as the Energy Sentinel, which is an idle pump shut-off, and the Never leak drain closure which uses a ball valve, have helped the Champion 100 HDPW earn its ENERGY STAR rating. The conveyor dishwasher features a top mounted control cabinet. In addition, Champion has designed an anti-jam conveyor drive system so you can wash up to 277 dish racks without worrying. Plus, the conveyor's vertical opening can accommodate items as large as an 18" x 26" sheet pan, increasing the variety of dishes that you can put through the unit. Note that this model is available standard with 208 Volt electrical, but there is also an optional 240 volt electrical model.

    Specifications
    Specifications
    Model 100HDPW
    Width 100 inches
    Depth 36.13 inches
    Height 65.6 inches
    Voltage 208 Volt Standard
    Hertz 60 Hz
    Phase 3
    Amps 162
    Water Usage 0.45 Gal/Rack
    Product Type Conveyor Dishwasher
    Manufacturer Champion
    Booster Heater Included Yes
    Booster Tank Capacity 6 Gal
    Booster Wattage 15 kW
    Conveyor Horsepower 1/6
    Conveyor Speed 7.7 Ft/Min
    Incoming Water Temperature 140 Degrees F
  • NSF Certified This item meets NSF's standards that focuses on public health protection, ensuring the item is designed and constructed in a way that promotes food safety.
  • Files
