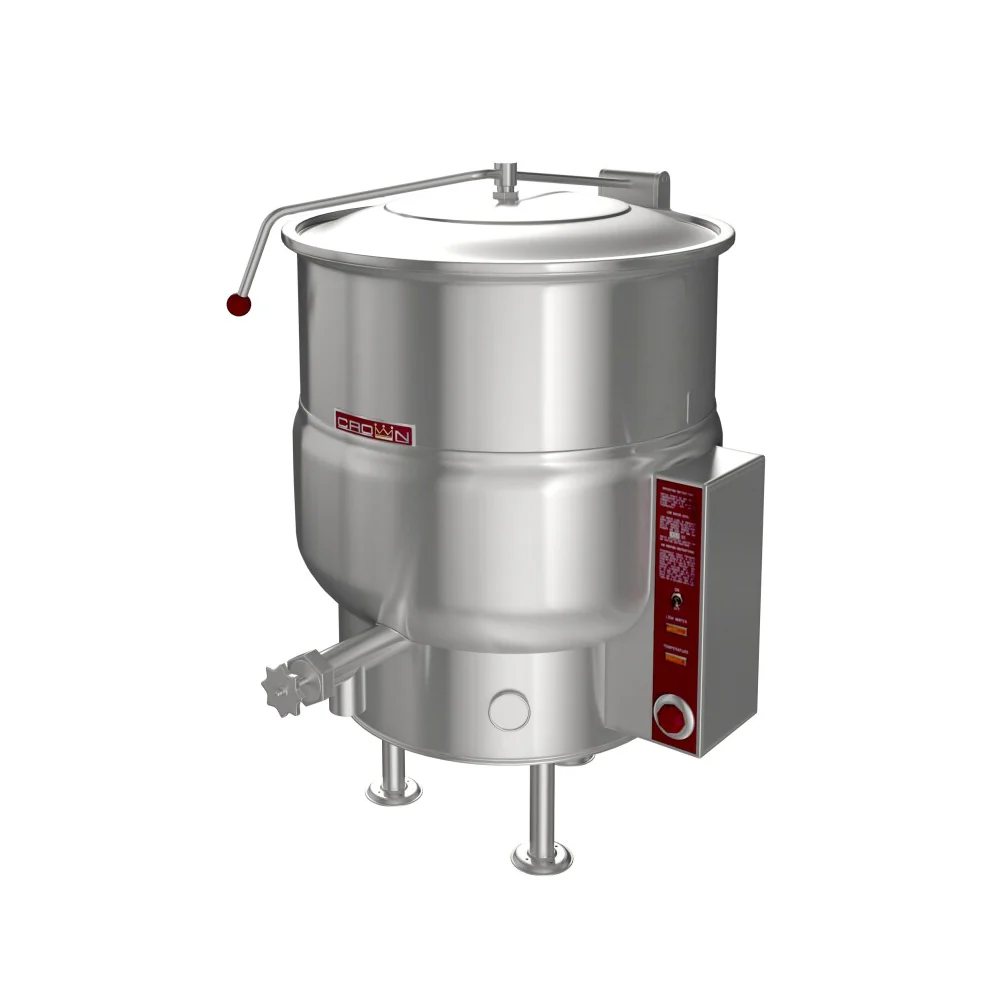

Crown EL-40 40 Gallon Stationary Electric Kettle - 208V
This Crown EL-40 40 Gallon Stationary Electric Kettle - 208V is self-generating, electric, tri-leg kettle. A double wall kettle interior shall form a steam jacket around the lower 2/3 of the kettle.
The jacket enclosure shall contain distilled water which is factory sealed. The bottom of the kettle shall be of hemispherical design for superior heat circulation. Kettle will be mounted on 3 stainless steel tubular legs fitted with a 4-hole adjustable foot for securing unit to the floor.
Construction shall be all welded #4 finish stainless steel, type 304. The liner on models 20 through 40 gallon shall be standard 316 for high acid content cooking. The controls shall be integrally mounted and shall include a power switch, thermostat, pilot light, low water light, vacuum/pressure gauge, safety relief valve, and low water shut off.
The kettle shall be standard with removable elements. Convenience features shall include a 2" (50 mm) draw-off valve, 20 through 40 gallon models are supplied with a hinged counterbalanced stainless steel domed cover. The 60 through 100 gallon models are supplied with a spring assist hinged stainless steel domed cover. The kettle shall be ASME Code stamped, National Board Registered, c-CSAus and NSF certified.
The kettle shall operate in a temperature range of 165°F to 285°F (74°C to 140°C) at a maximum pressure of 50 psi (345 kPa).
| Specifications | |
|---|---|
| Model | EL-40 |
| Length | 26 Inches |
| Width | 31.5 Inches |
| Height | 38 Inches |
| Voltage | 208 V |
| Hertz | 50/60 Hz |
| Phase | 3 pH |
| Wattage | 18 kW |
| Amperage | 41.6 Amps |
| Capacity | 40 Gallon |
| Operating Pressure | 50 psi / 345 kPa |
| Temperature Range | 165 - 285°F / 74 - 140°C |
| Installation Type | Floor |
| Material | 304 Stainless Steel |
| Product Type | Steam Kettle |
