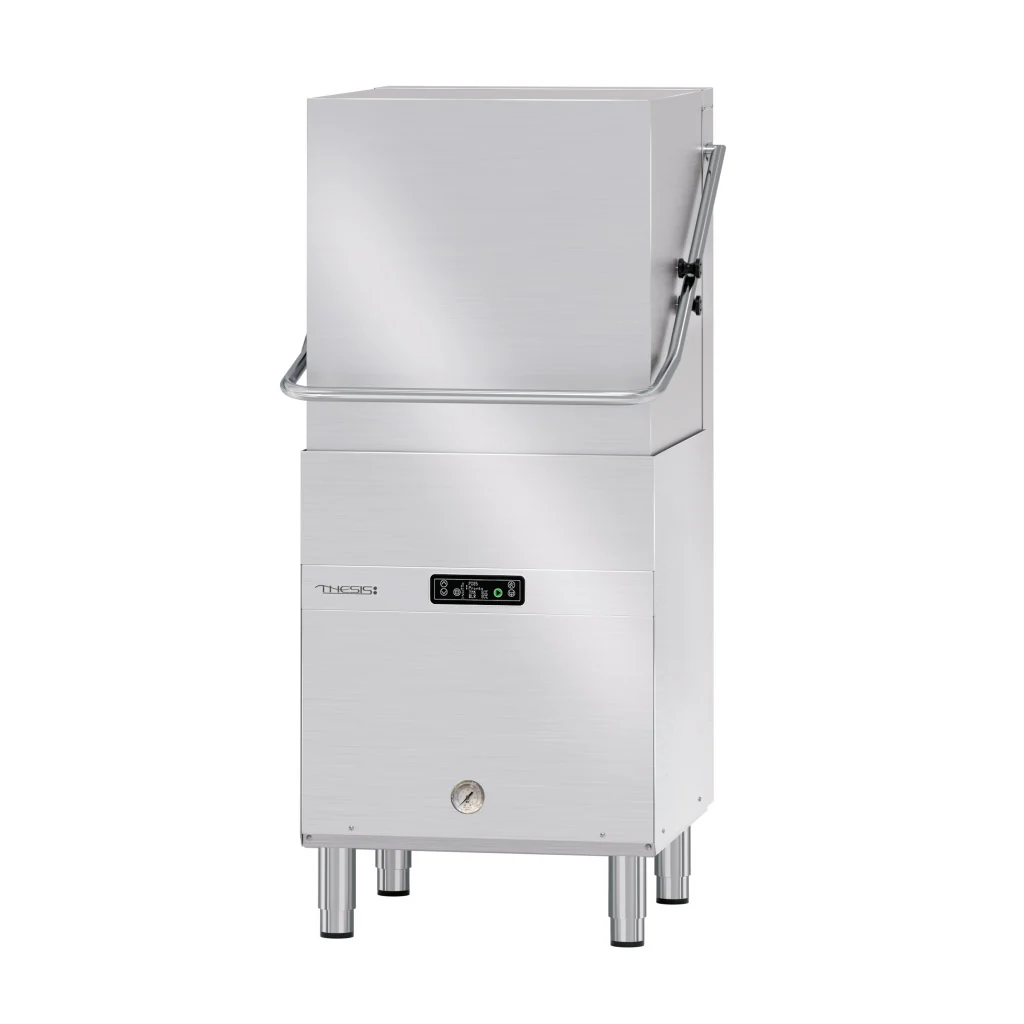

Thesis Handy North American Pass Through Type High-Temp Dishwasher - H110E-A

Product image 1

Thesis Handy North American Pass Through Type High-Temp Dishwasher - H110E-A

Thesis Handy North American Pass Through Type High-Temp Dishwasher - H110E-A

  • Control panel with LCD display
  • EWC System, electronic control with 4 individual programmable cycles
  • Energy saving start cycle system
  • Drain pump optional
  • Vacuum breaker valve
  • Integral stainless steel tank filter + New filtering group for suction and drain
  • Racks supplied: 2 dish baskets, 1 glass basket, and 2 cutlery trays
  • Adjustable 3L/hour detergent dispenser
  • 60 racks/hour or approximately 35 racks/hour in accordance to NSF standards
Description

The Thesis Handy North American Pass Through Type High-Temp Dishwasher is a specialized dishwashing unit essential for optimizing warewashing throughput in high-volume commercial kitchens. Designed with a pass-through type hood mechanism, this machine allows for continuous feeding of racks from a soiled area into a clean finishing area. This flow-through workflow eliminates bottlenecks at the sink, significantly reducing dishwashing cycle times and allowing operations to manage high service demands with maximum labor efficiency.

Sanitation compliance is guaranteed by the unit's high-temperature operation. This feature uses heated water to reach the critical final rinse temperature necessary to thermally sanitize dishware, glassware, and cutlery, meeting the strictest health and safety regulations. Utilizing heat as the primary sanitizing agent ensures every item is hygienically clean and ready for immediate reuse, minimizing concerns over residual chemical contamination common with low-temperature machines.

The H110E-A accommodates conventional dish racks, supporting seamless integration into existing operational systems. The hood design provides easy, ergonomic access for staff during loading and unloading, reducing physical strain over long shifts. This combination of size compatibility and functional specialization makes it a critical long-term asset for maintaining fast, sanitized dish service.

Specifications
Specifications
Model H110E-A
Width 27.15 Inches
Depth 30.25 Inches
Height 56.75 Inches - Closed
74.75 Inches - Opened
Tank Heating Element 4.5 kW, capacity: 9.8 gal (37L)
Booster Heating Element 6.0 kW, capacity: 1.9 gal (7.3L)
Washing Pump 1.5 HP
Total Power Input 6,52 kW
Voltage 208 - 220 V
Hertz 50 - 60 Hz
Phase 1 - 3 Ph
Amperage 30 - 40 Amps
Hot Water Requirements 0.50 GPC (2.6LPC) 125⁰F (55⁰C)
Water Line Requirements 0.75” hose supplied
Water Pressure Requirements 30 – 45 psi (2 – 3 bar)
Drain Line 1" (25mm) connection hose supplied
Door Clearance 15.6" (395mm) height
Product Type Single Rack Dishwasher
  • NSF Certified This item meets NSF's standards that focuses on public health protection, ensuring the item is designed and constructed in a way that promotes food safety.
  • ETL Certified Determined through independent testing and periodic follow-up inspections by NRTL. This item meets North American product safety standards and published industry standards.
  • ETL Sanitation List This item demonstrates compliance to North American sanitation standards
  • Files
    Select Voltage and Phase
    From $1,670.62

    Original: $5,568.74

    -70%
    Thesis Handy North American Pass Through Type High-Temp Dishwasher - H110E-A

    $5,568.74

    $1,670.62

    Product Information

    Shipping & Returns

    Description

    • Control panel with LCD display
    • EWC System, electronic control with 4 individual programmable cycles
    • Energy saving start cycle system
    • Drain pump optional
    • Vacuum breaker valve
    • Integral stainless steel tank filter + New filtering group for suction and drain
    • Racks supplied: 2 dish baskets, 1 glass basket, and 2 cutlery trays
    • Adjustable 3L/hour detergent dispenser
    • 60 racks/hour or approximately 35 racks/hour in accordance to NSF standards
    Description

    The Thesis Handy North American Pass Through Type High-Temp Dishwasher is a specialized dishwashing unit essential for optimizing warewashing throughput in high-volume commercial kitchens. Designed with a pass-through type hood mechanism, this machine allows for continuous feeding of racks from a soiled area into a clean finishing area. This flow-through workflow eliminates bottlenecks at the sink, significantly reducing dishwashing cycle times and allowing operations to manage high service demands with maximum labor efficiency.

    Sanitation compliance is guaranteed by the unit's high-temperature operation. This feature uses heated water to reach the critical final rinse temperature necessary to thermally sanitize dishware, glassware, and cutlery, meeting the strictest health and safety regulations. Utilizing heat as the primary sanitizing agent ensures every item is hygienically clean and ready for immediate reuse, minimizing concerns over residual chemical contamination common with low-temperature machines.

    The H110E-A accommodates conventional dish racks, supporting seamless integration into existing operational systems. The hood design provides easy, ergonomic access for staff during loading and unloading, reducing physical strain over long shifts. This combination of size compatibility and functional specialization makes it a critical long-term asset for maintaining fast, sanitized dish service.

    Specifications
    Specifications
    Model H110E-A
    Width 27.15 Inches
    Depth 30.25 Inches
    Height 56.75 Inches - Closed
    74.75 Inches - Opened
    Tank Heating Element 4.5 kW, capacity: 9.8 gal (37L)
    Booster Heating Element 6.0 kW, capacity: 1.9 gal (7.3L)
    Washing Pump 1.5 HP
    Total Power Input 6,52 kW
    Voltage 208 - 220 V
    Hertz 50 - 60 Hz
    Phase 1 - 3 Ph
    Amperage 30 - 40 Amps
    Hot Water Requirements 0.50 GPC (2.6LPC) 125⁰F (55⁰C)
    Water Line Requirements 0.75” hose supplied
    Water Pressure Requirements 30 – 45 psi (2 – 3 bar)
    Drain Line 1" (25mm) connection hose supplied
    Door Clearance 15.6" (395mm) height
    Product Type Single Rack Dishwasher
  • NSF Certified This item meets NSF's standards that focuses on public health protection, ensuring the item is designed and constructed in a way that promotes food safety.
  • ETL Certified Determined through independent testing and periodic follow-up inspections by NRTL. This item meets North American product safety standards and published industry standards.
  • ETL Sanitation List This item demonstrates compliance to North American sanitation standards
  • Files
